36V 14Ah ( 504 Watt-hour) High Power Lithium Ion Battery with Barrel Output Connector

Alternative Views:

Regular Price: US$799.00

Sale Price: US$469.95

Condition: Brand New
Warranty: 1 Year Warranty

Stock Status:In Stock

Product Code: BAT-BX3699-M525

Qty:

Description

36V 14Ah High Capacity (14Ah @ 36V or 504Watt-hour) Lithium Ion Battery

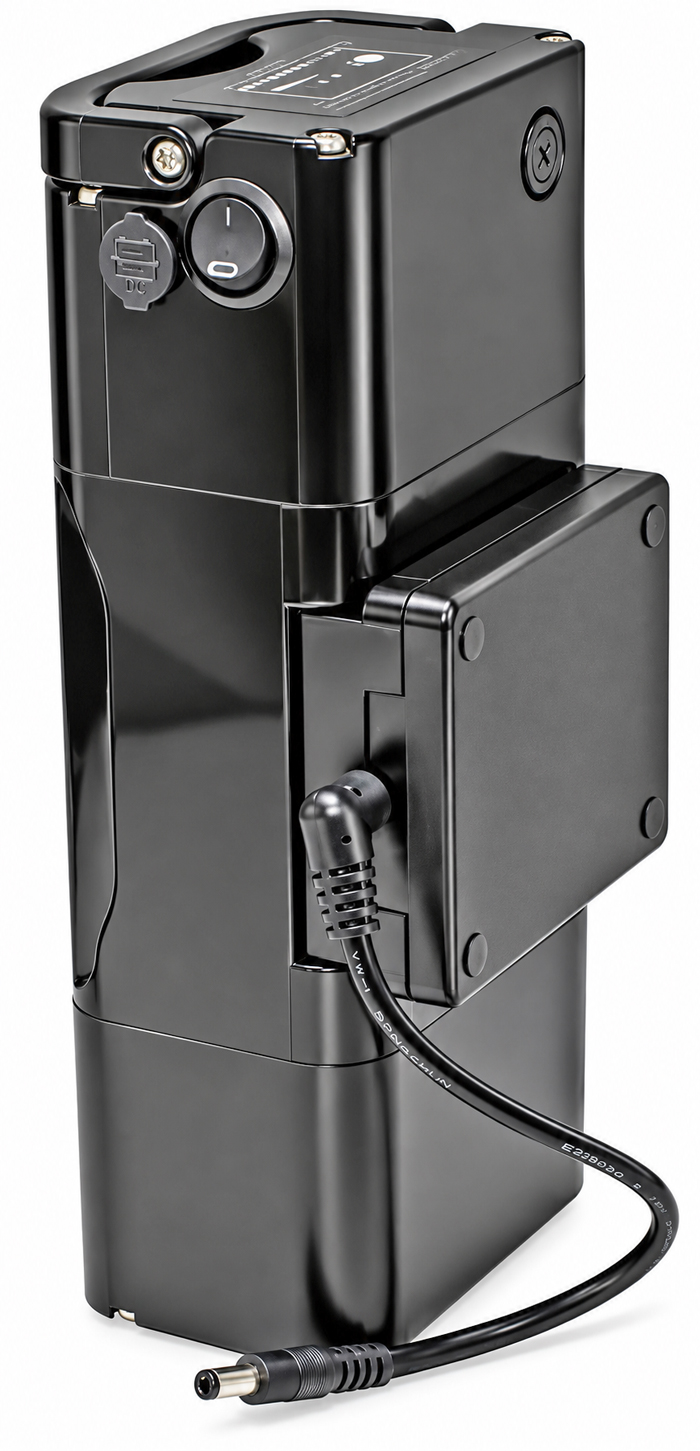

Flat Battery Output Connection Box

With 5.5 x 2.5mm Barrel Connector Output

Small size, light weight, easy to carry and mount.

High Capacity: 14Ah (504 Watt-hour)

Light Weight: Only weighs about 5.5 pounds. ( A equivalent capacity Sealed Lead Acid battery may weigh around 30~40 pounds.)

Small Size: 9.8" x 4.4" X 3", can fit into many different places.

Very Powerful: Continuous output up to 450-540W, maximum burst output up to 540W ~ 640W.

High Quality: Made with high quality Panasonic Lithium Ion cells.

High Durability: Water-resistant and firm ABS plastic casing. The internal pack is stabilized by braces that can avoiding mechanical accidents caused by vibration.

High Safety: Built-in PCB protection to prevent short circuit, over-current, over-heat, over-charge, over-discharge.

Output Voltage: 30V ~ 42V, Nominal Voltage: 36V;

Maximum Continuous Output Current: 15A ;
Maximum Burst Output Power ( up to 10 minutes) Current: 18A

This battery output voltage range is 30V ~ 42V. Nominal output voltage 36V. When the battery is fully charged, its output voltage is 42V. The output voltage will drop gradually during the discharge process, and the final cut off voltage is 30V:

Safety Features

Water-resistant and firm ABS plastic casing.
Built-in PCB protection.
Prevent short circuit, over-current, over-heat, over-charge, over-discharge.
The internal pack is stabilized by braces, thereby avoiding mechanical accidents caused by vibration.

Specifications:

Model No.	BX36H99B
Cell Brand	Panasonic
Chemistry	Lithium-ion
Voltage	Nominal Voltage: 36 V Minimum Voltage: 30V Maximum Voltage: 42.55V
Capacity	14Ah or 504 Wh
Rate	504 Watt-hour
Configuration	10S4P
Charge Voltage Limit	42.5V
Max. Charge Current	2.5 A
Continuous Discharge Current	15 A
Burst Discharge Current (up to 10 minutes)	18 A
Size	245.00 x 110.00 x 75 mm ( or 9.8" x 4.4" X 3")
Weight	2.45 kg ( or 5.5 pound)
Operate Temp. Charge	0 ~ 45 C
Operate Temp. Discharge	-20 ~ 60 C
Storage Temp.	-20 ~ 40 C
PCB Safety Function	Cell balancing Over-discharge Over-current protection Over-charge Temperature protection Secondary protection

LED Display to show battery power level:

Charge Battery:

Package Contents:
The battery comes with a AC charger and a flat output connection box. The AC charger can charge the battery from any 100-240V AC power source.

Warranty: One Year limited warranty. The one year limited warranty covers manufacturing and quality defects only. Please note that batteries wear out with use. The amount of charge a battery can hold gradually decreases due to usage and aging, which is normal, and this is not the issue covered by warranty.
