This super-high capacity (223 Watt-hour, or 60300mAh) external universal rechargeable battery pack can add an extra 9-15 hours of running time for most laptop/notebook computers, 20-40 hours for most ultrabooks/tablets, and 80 hours for iPads. It features a 15V or 19V selectable output voltage and a 5V USB port, together with optional 12 or more connector tips. Made with
high quality
Panasonic Li-ion battery cells.
It has up to 4 ~ 5 times internal battery running time . (223 Watt-Hour capacity compared to 40~60
Watt-Hour capacity of most notebook computer batteries.)
IEC /UL 62133 Certificated
Its universal platform works for most of notebook
computers on the marketplace.
Its compact size can easily fit into a laptop/notebook carry bag.
Technical Specifications
|
Model:
|
BP220
|
|
Capacity:
|
223 Watt-Hour( or 60300 mAh)
|
|
Battery Cell:
|
Panasonic
|
|
Colors:
|
Silver
|
|
Chemistry:
|
Li-ion
|
|
Input Charging Voltage:
|
DC 12 - 19V
|
|
Output Voltage:
|
15V/19V + 5V USB Port
|
|
Max. Output Current:
*
|
Max. 5A for 19V, 5A for 15V, 2.1A for 5V USB Port
|
|
Charging time:
|
4-6 hours
|
|
Size:
|
270.00 x 145.00 x 32.55mm
|
|
Weight:
|
1340g
|
|
Power Indicator:
|
4 level LED indicator
|
|
Built-in Protection Circuit:
|
- Over-charge
- Over-discharge
- Over current
- Over temperature
- Short circuit protection
|
|
Included in Standard Package:
|
- Battery x 1 pc
- AC Charging Adapter x 1 pc
- Adapter Power Cord x 1 pc
- DC Car Charging Adapter x 1pc
- Power Cable x 1 pc
- Optional Connector Tips
|
* This battery actual output current depends the demands from the powered device and is variable.

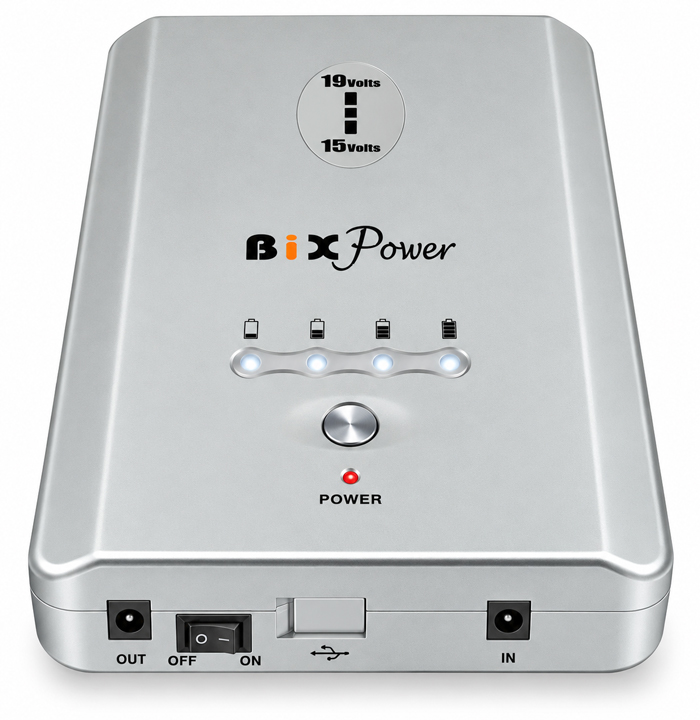

IN -- Battery input port for connecting to battery charger
OUT -- Battery power output port, connect to output cord.
ON/OFF -- This On/Off switch controls output port power.
USB -- 5VUSB port with a sliding cover
You can
use the 5V USB Port on the battery to charge cellular phone, MP3 player or other
small electronics that can be charged from a 5V USB port. However, the
battery pack does not come with any cable for connector tips for this
USB port. Our optional Z4 cable and connector tips will work with this
5V USB port.
We also offer a
VESA Mount Kit to mount this battery to the back of LCD monitors:

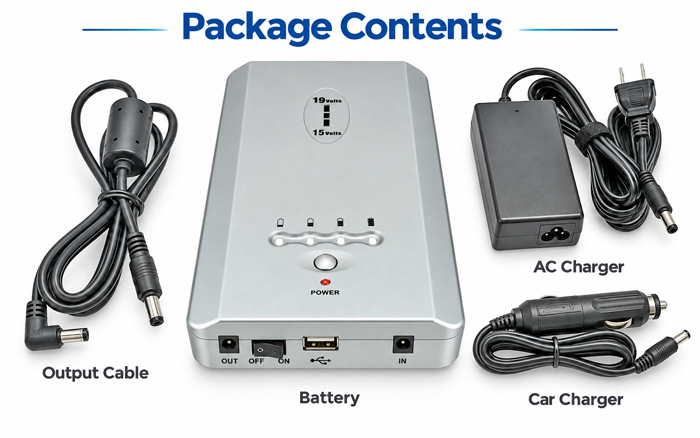

Battery Standard package:

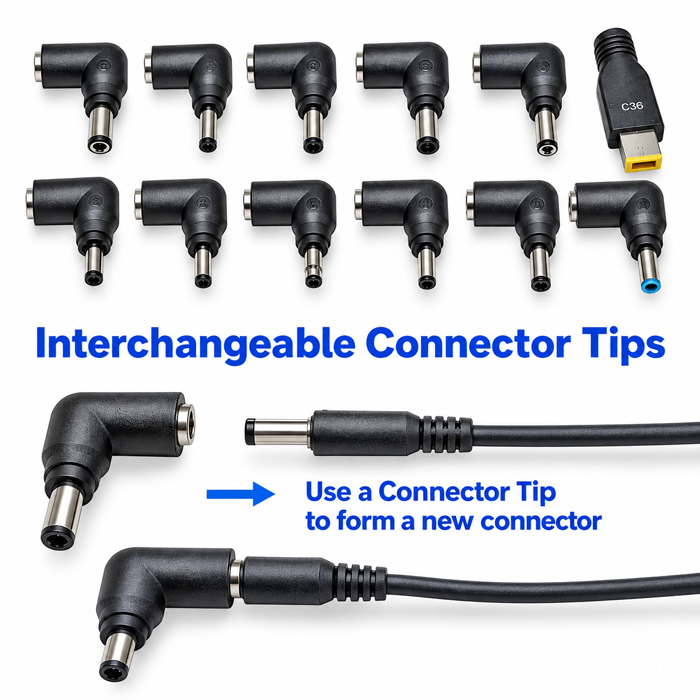

Optional connector tips:
The connector size on battery output cable is 5.5 x 2.5mm barrel connector. If this size does not fit your device, you may order an optional C series connector tip or connector tips kit with the battery pack, such as this
12 connector tips kit:
You may order battery pack with or without optional interchangeable connector tips
Comparisons of External Battery
and Internal Battery
|
|
BP220 External
Battery
|
Traditional Internal
Battery
|
|
How to Charge battery
|
Has its own charger. Battery can be charged
anytime without the laptop/notebook computer. Very convenient
|
Must put
battery into laptop/notebook computer or use expensive proprietary charger to
charge battery
|
|
How to use battery
|
Plug to the laptop/notebook computer's DC
power input plug, plug and play.
|
Insert the
battery into the laptop/notebook computer's battery bay.
|
|
Compatibility
|
Can be used for 90% of laptop/notebook computers
on the market with optional connector tips. When you upgrade your laptop/notebook computer, you may still be
able to use the battery for new laptop/notebook computer.
|
Every internal
battery is proprietary. Different laptop/notebook computer needs different
battery.
|
|
Other usage
|
Can provide
15V and 19V DC power for other electronic devices also.
|
can only be used for designed laptop/notebook
computers.
|
How this
battery works:
1. Charge the battery:
This battery has its own AC battery charger and 12V car charger. You can charge it from any 110V or 220V AC power source or from a car 12V cigarette lighter socket with the 12V car charger. Both the AC charger and the 12V car charger need to connect to the In-port of the battery pack.
To quickly charge the battery, we recommend to charge it while it is not in use.
The BP220 is specially designed to be able to charge and discharge at same time. However, since each lithium battery has limited charge/discharge cycles ( around 500 cycles), it is not recommend to use the battery when AC power is available.

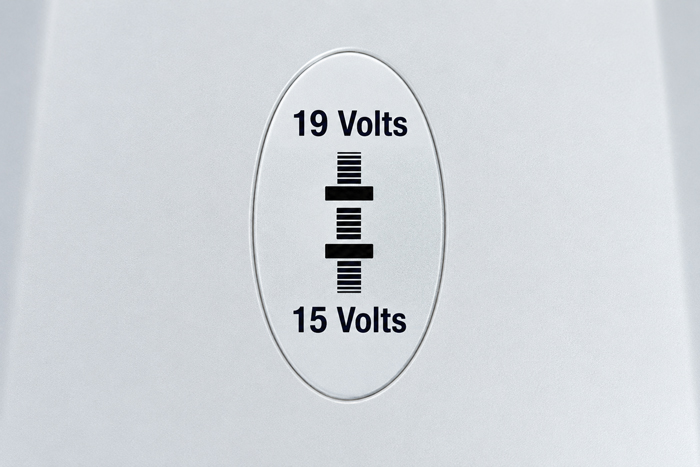

2. Set correct output voltage:
This battery has a switch to set the voltage output at 15V or
19V. 15V is compatible with 14V~16V, 19V is compatible with 18V~21V.

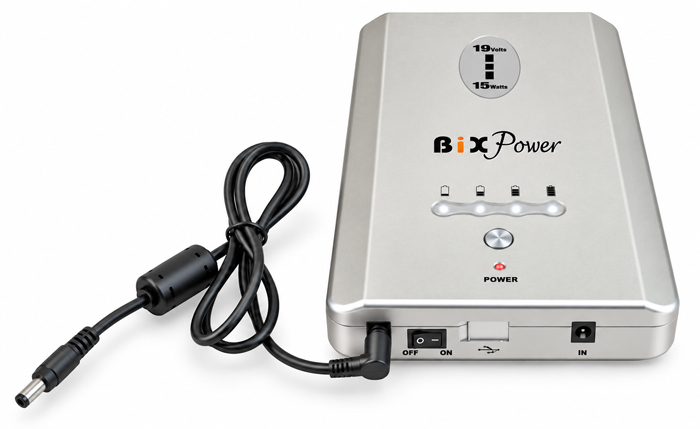

3. Plug power output cable to battery Out port
If your device DC power input requirement is 14V ~ 21V, you can use the output cable to power your device directly from the battery
Out port like this:
One end of the output cable will connect to the battery output port. The other end has a 5.5 x2.5mm connector which will fit a lot laptop notebook computers and other devices.
If the Z6 cable connector does not fit your laptop notebook computers, you can use one of the included connector plug tips. With
the plug tips not connected to Z6 output cord, locate the correct one by
fitting the it into your device's DC Jack. The tip should fit snugly in the DC jack. Then, plug the tip onto the Z6 output power cable.

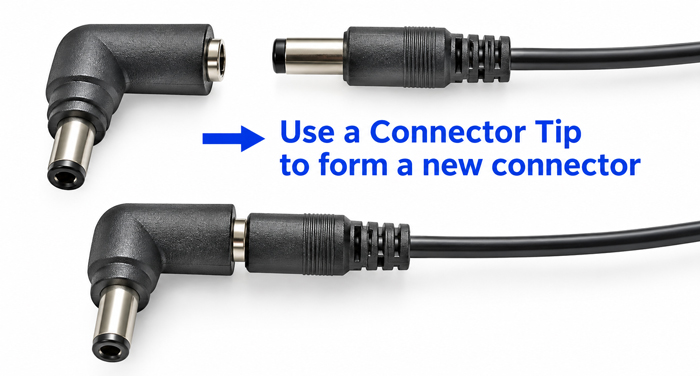

4.
Plug the optional connector tip and output cord
If you ordered battery with
optional connector tips and output cable does not fit your device, you may select the right connector, plug it onto the Z6 output cord, then plug the output cord to the battery output port:
Just that
simple, now you are ready to use it !
Optional 24V Power converter:
This battery can output 15V and 19V stable voltage. If you need 12V or 24V output voltage, you may use this battery together with BiXPower 12V Power converter or 24V power converter to get 12V or 24V voltage. Just like this:
12V or 24V DC Converter is optional, not included with standard package.
Optional USB C Power converter:
This battery can output 15V and 19V stable voltage DC power. If you need USB Type C output, you may use this battery together BiXPower USB Type C converter like this:
USB Type C converter is optional, not included with standard package.
Note:
If your
notebook internal battery is a working battery and has been fully charged, you
can leave it in your notebook. Otherwise, we recommend you remove the
internal battery from your notebook to maximize the external battery running
time.The external battery will still work fine if you leave the non-charged
internal battery in the notebook, but it may not reach the maximum running time. This is because it needs to charge the internal battery and power the computer at the same time.
How long can this external battery run
?
This battery's capacity is about 220Wh(Watt-hour):
you can compare
this battery's capacity with your internal battery capacity to figure out how
long this battery can run your notebook. For example, if your notebook internal
battery output is: 10.8V & 4000 mAh, then, your notebook internal battery
capacity is:
11.1V x 4400 mAh = = 49 Wh
(Watt-hour).
This external battery capacity is about 220/49=4.5 times
of your internal battery capacity.
If your internal notebook battery can
run 2 ~ 3 hours, then the external battery pack can theoretically run about : 9 ~ 14 hours.
This is a rough estimate. Actual running time
varies, depending on the notebook computer's configurations and what kind of
applications are running . For example, screen brightness, the use of the CPU, the
hard drive, the CD drive, and other peripherals results in an additional drain
upon the battery, effectively reducing the battery's run-time. The total
run-time of the battery is also heavily dependent upon the design of the
notebook. To ensure maximum performance of the battery, optimize the computer's
power management features. Refer to the computer manual for further
instructions.

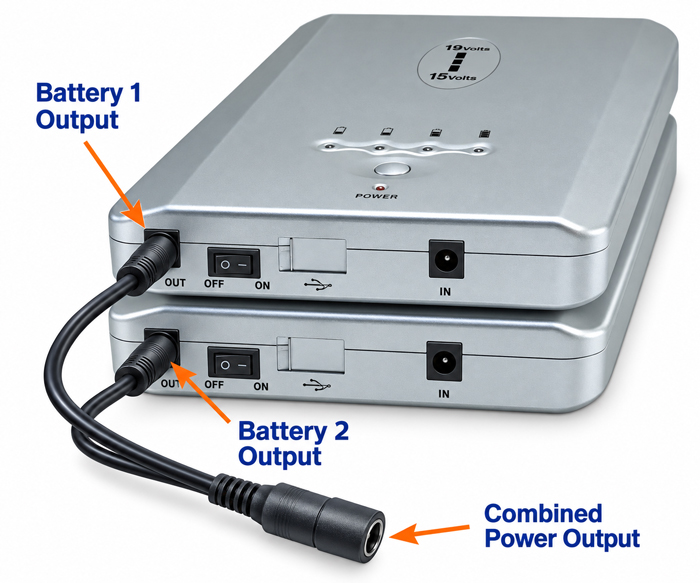

Combine 2 ( or more) batteries together to provide more running time:
If you need more running time, you may connect 2 batteries together in parallel with BiXPower
Y25 Split Connector :
Y25 Split Connector Not Included
Cautions: To link two batteries in this way, please make sure:
1. The output voltage of two batteries is set at same.
2. Any single battery has ability to power the powered device by itself.The purpose of link two or more batteries together is to provide longer running time without interruption. There this no balance control between two batteries . One battery may output more power than another battery and run out of power earlier than another battery. This will not be a problem if a single battery output power is enough to run powered device. However, if the powered device power demand is more than a single battery capability, it may run to problem when one battery run out of power earlier.
Notes: Only a few BiXPower batteries ( such as BP90, BP100, BP160 and BP220 batteries) have been specially designed to allow multi batteries to connect in this way. Other batteries may not be allowed to be connected together in this way (unless specially mentioned).You may also use multi Y25 Split Connectors to Daisy Chain more batteries to provide even more power. Please make sure all batteries output voltages are set at same. Fully charge each battery separately before connect them together.
The battery regular Z6 output cable can fit Y25 connector female end, which will be combined output port in this case. You may use BiXPower
Special Cable with On/Off Switch : which can be used power output cable directly without battery regular Z6 output cable.
Compatible with following Laptop /Notebook /Netbook /Ultra Book /Tablet computers with optional connector tips:
Acer: Most models use connector tips: #7, #31. Some models may not need the connector tip. Most models need to set battery output voltage at 19V.
Apple: Apple Macbooks made before 2012 can use the connector tip C28. Apple Macbooks made after 2012 may need to use the C38 connector, which is not included with this battery but is available for purchasing seperately from BiXPower. Most Macbooks need to set the battery output voltage at 15V. Some Macbooks that come with 18.5V ~20V power adapters may need to set the battery output voltage at 19V
Asus: Most Asus laptop computers can use the battery power output cable directly without any connector tip. Some newer models may use connector tips #26, #31. Most models need to set battery output voltage at 19V. Asus models that comes with 12V power adapters will not be compatible with this battery. For models that need 12V power, please check out our BiXPower BP160 battery.
Compaq: Most models use connector tips: #1, #24, #33, #34, #35. Some models may use the battery
power output cable directly without any connector tip. Most models need
to set battery output voltage at 19V.
Dell: Most models use connector tips: #27, #32. Some models may use the battery
power output cable directly without any connector tip. Most models need
to set battery output voltage at 19V.
Fujitsu: Most models use connector tips: #6. Some models may use the battery
power output cable directly without any connector tip. Most models need
to set battery output voltage at 15V
Gateway: Most models use connector tips: #3, #7, #31. Some models may use the battery
power output cable directly without any connector tips. Most models need
to set battery output voltage at 19V.
HP: Most models use connector tips: #1, #24, #33, #34, #35. Some models may use the battery
power output cable directly without any connector tips. Most models need
to set battery output voltage at 19V.
IBM: Most models use connector tips: #15. Some models may use the battery
power output cable directly without any connector tip. Most models need
to set battery output voltage at 19V. New
Lenovo: Most models use connector tip: #15. Some models may use the battery
power output cable directly without any connector tip. Some new models may need connector tip #36, which can be purchased separately. Most models need
to set battery output voltage at 19V.
Panasonic: Most models use connector tip: #6. Some models may use the battery
power output cable directly without any connector tip. Most models need
to set battery output voltage at 15V. Some may need to set at 19V.
Samsung: Most models use connector tip: #2. Some models may use the battery
power output cable directly without any connector tip. Most models need
to set battery output voltage at 19V.
Sony: Most models use connector tip: #6. Some models may use the battery
power output cable directly without any connector tips. Most models need
to set battery output voltage at 19V. Some may need to set at 15V.
Toshiba: Most models that come with a 15V power adapter will use connector tips #5 and #13. Those that come with a 19V power adapter may use the battery
power output cable directly without any connector tip. 15V Models need
to set battery output voltage at 15V. 19V Models (including 19.5V and 20V)need to set battery output voltage at 19V.
Others: This battery should work for your computer if:
1. Your computer original power adapter output voltage is between 15V ~ 20V.
2. The power adapter connector is a regular round shape barrel connector, not a special shape.
3. Your computer original power adapter maximum output current is less than 6A
Warranty: One Year limited warranty. The one year limited
warranty covers manufacturing and quality defects only. Please note that
batteries wear out with use. The amount of charge a battery can hold
gradually decreases due to usage and aging, which is normal, and this issue is not covered by warranty.
