D3 Right Angle Dongle Connector - 5.5 x 2.1mm Male Plug with 5.5 x 2.5mm Female Jack
CNT-D3

Alternative Views:
Regular Price: US$9.95
Discount Price US$5.79

Stock Status:(Out of Stock)

Product Code: CNT-D3
Qty:

Description

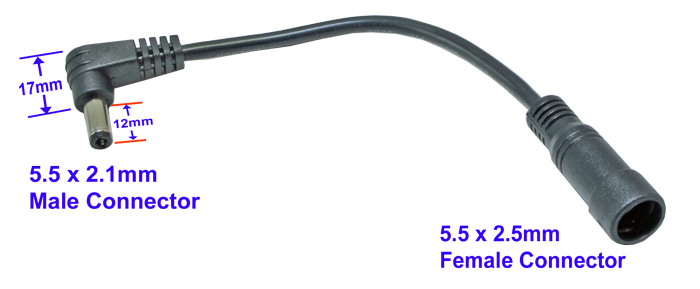

This Right Angle 90 degree dongle connector converter can convert a straight 5.5 x 2.5mm power connector to a 90 degree right angle 5.5 x 2.1mm connector.

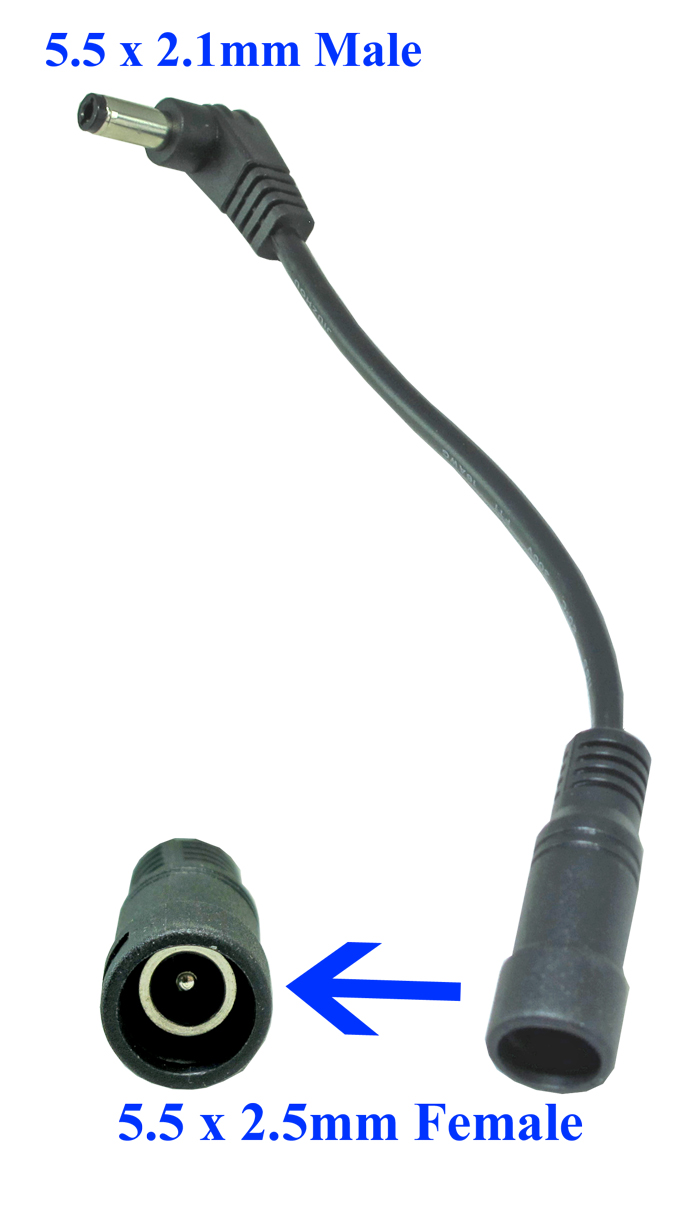

One side is a 5.5 x 2.5mm female jack, which can plug onto a 5.5 x 2.5mm male connector. The other end is a 5.5 x 2.1mm right angle connector.




This right angle converter can save space around the power plug. It only needs around 0.7 inches of space.

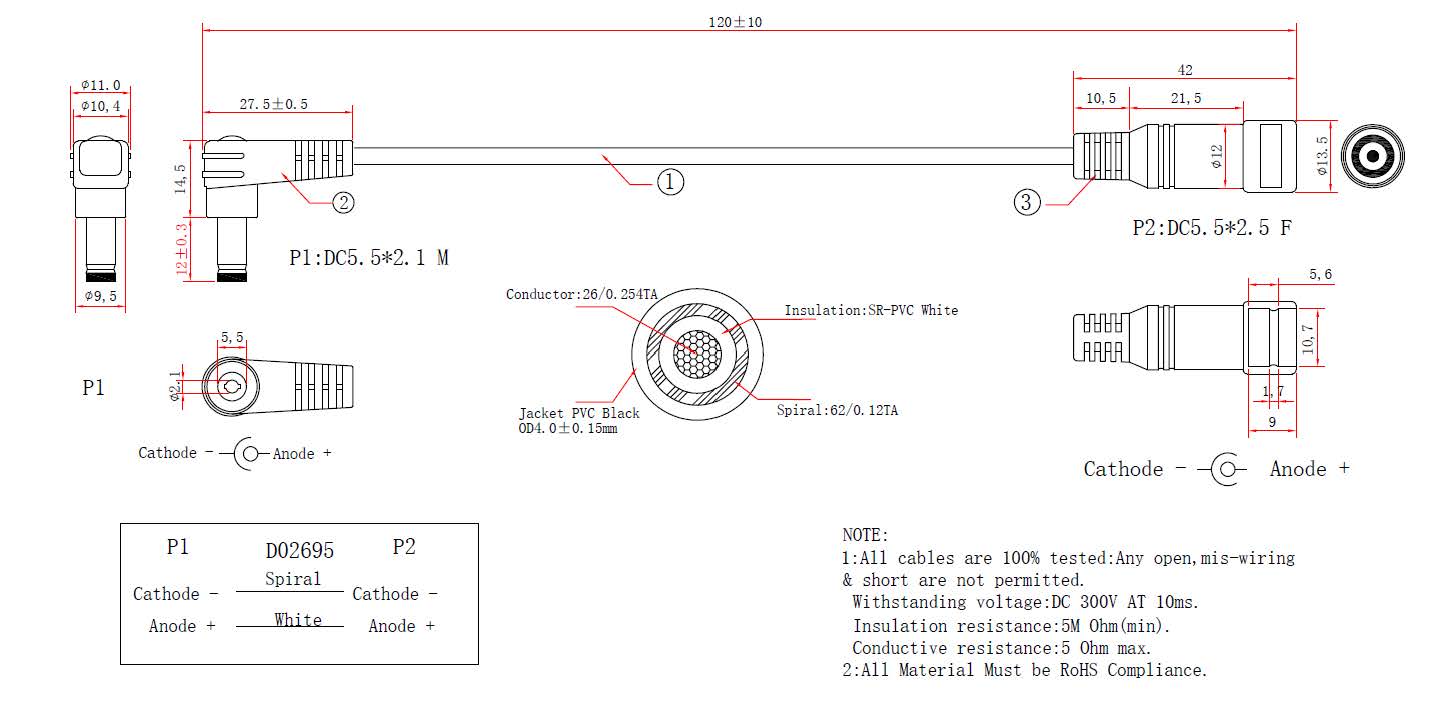

Specifications:
Male Plug: 5.5 x 2.1mm Barrel Connector
Female Jack: 5.5 x 2.5mm
Middle Cable: 16AWG
Total Length: Around 5" (130mm)
