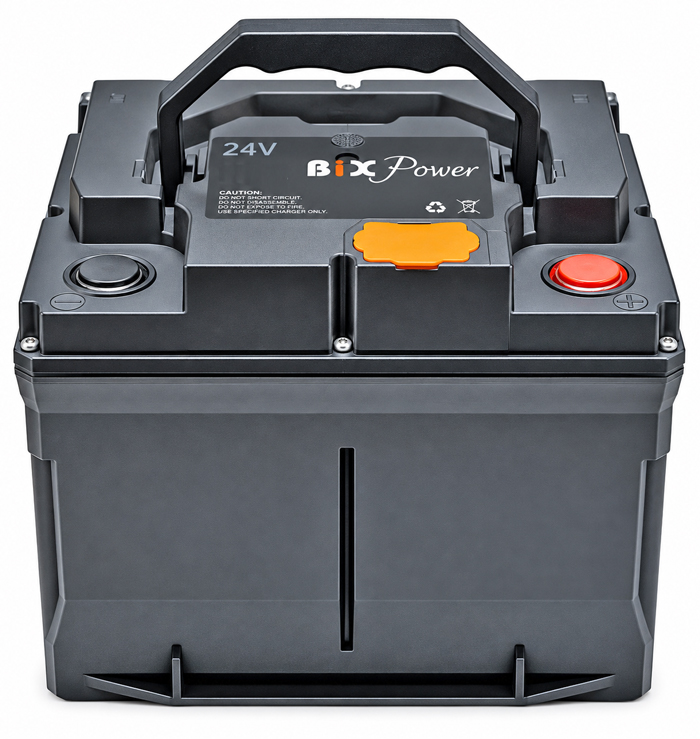

24V 1774 Watt-hour ( 70.4Ah @ 25.2V) Lithium ion battery pack.

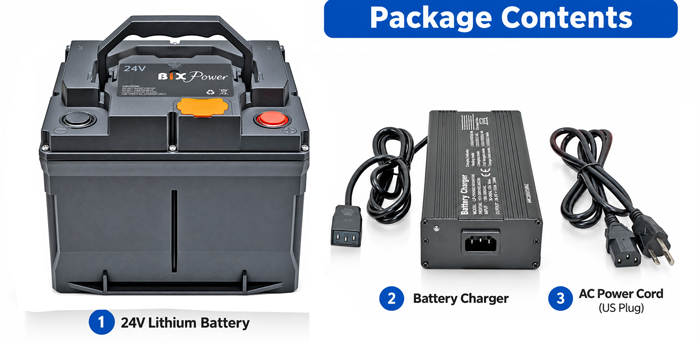

Package Contents:
1. HL2454B Battery x1
2. 300W AC Charger x 1
3. Power Cord for AC Charger: x 1
4. Battery Terminal Post Screw: x 2

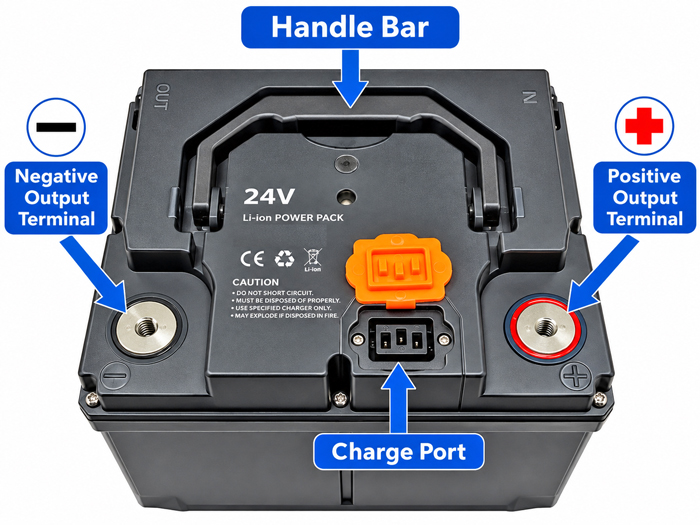

Important: This battery output terminals are separated from charge port. Charge battery from charge port only. Do not charge the battery from output terminals. The charger will control charging voltage and current. Internal circuit will provide over charge and over discharge protection, but will not control charge voltage and current.

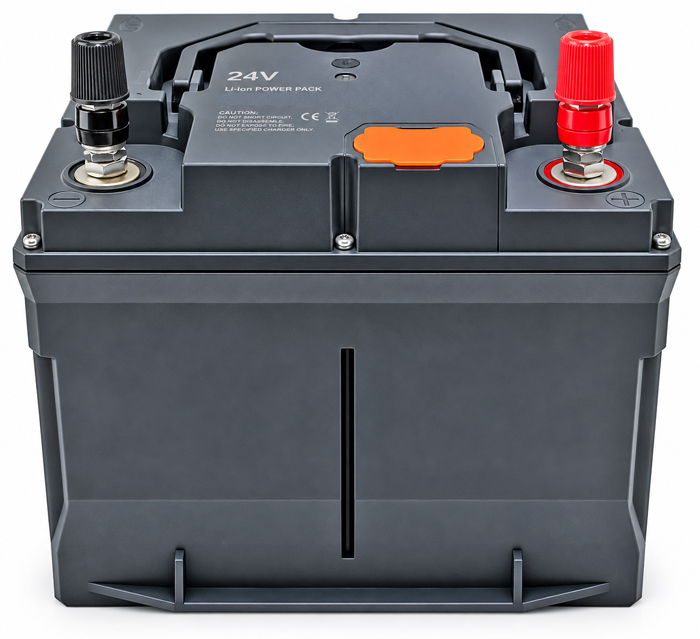

Optional Output Terminal Posts:
BiXPower M8 Red and M8 Black Terminal Posts are compatible with this battery.
Note: M8 Red and M8 Black Terminal Posts are optional and not included with standard package. Need to purchase seperately.
Specifications:
|
Model No.
|
|
|
Chemistry
|
|
|
Voltage
|
- Nominal Voltage: 25.2 V
- Minimum Voltage: 21V
- Maximum Voltage: 29.4V
|
|
Capacity
|
- 70.4Ah (Stars from Dec. 2020)
|
|
Rate
|
- 1774 Watt-Hour ( 70.4Ah @ 25.2V) ( Stars from Dec. 2020)
|
|
Charge Voltage Limit
|
|
|
Max. Charge Current
|
|
|
Continuous Discharge Current
|
|
|
Burst Discharge Current
|
|
|
Size
|
|
|
Weight
|
|
|
Operate Temp. Charge
|
|
|
Operate Temp. Discharge
|
|
|
Storage Temp.
|
|
|
PCB Safety Function
|
- Cell balancing
- Over-discharge
- Over-current protection
- Over-charge
- Temperature protection
|
Lithium battery vs. Lead Acid Battery
|
Battery Type
|
Lithium
ion Battery
|
Lead Acid Battery
|
|
Voltage fluctuation in working
|
Remains stable with
different output
|
cVoltage fluctuation based on output
|
Cycle Life
(Residual capacity over
5%)
|
500 ~800 times
|
150~300 times
|
|
Capacity
|
Very
stable and very little affection by output current
|
Suffer a big affection in by output current. Capacity will be much smaller
than rated capacity when output current is large.
|
|
Depth Of Discharge (D.O.D.)
|
99%
|
50-60%
|
|
Self discharge rate (per month)
|
1~1.5%
(Capacity remains over 80% even the battery is idled for one year)
|
30% (Battery capacity drops near to zero if it is unused for 3 months)
|
|
Fast charge capability
|
Charge
to full capacity in about 6 hours
|
It needs 8 ~ 12 hours to fully charge the battery
|
|
Discharge working temperature ℃
|
-20～+75
|
-20～+55
|
|
Memory effective
|
None
|
None
|
|
Thermal stability
|
Outstanding
|
Acceptable
|
|
Weight (Compare to the same
capacity)
|
1/4 of
weight to lead acid battery
|
comparatively heavier weight
|
|
Installation
|
Any
direction
|
Upright position is necessary
|
|
Safety
|
Built-in safety protection function
|
Danger of acid leakage
|
Environmental conform-ability
|
Conforms
to RoHs standard
|
Violates RoHs standard；Lead and sulphate acid are pollutants
|
|
Disposition of used battery
|
Lithium-ion batteries are generally not considered an environmental hazard
because they do not contain lithium metal. The United States government labels
them as non-hazardous waste and does not oppose them being discarded together
with the trash that makes up the local waste stream.
|
Needs special recycling after treatment
utility
|

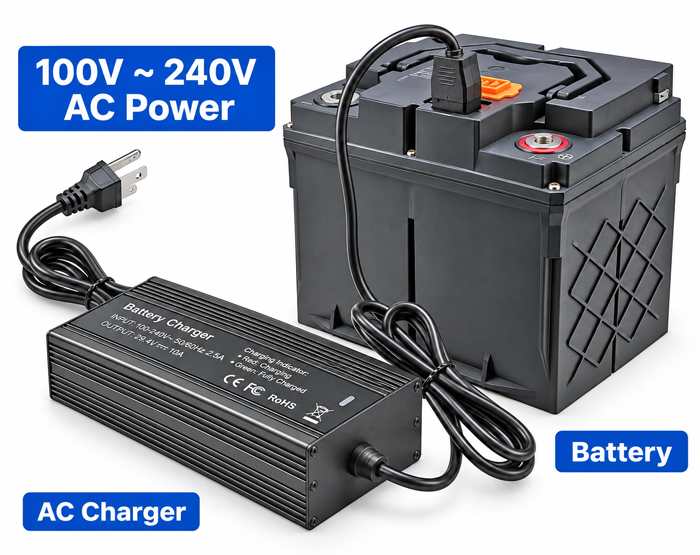

2. Charge battery:
The package comes with a power 10 Amps AC charger, which can fully charge the battery in around 8 hours.
This AC charger output connector is a special connector for BiXPower batteries. It may not fit with any other third-party batteries..
Input: AC 100-240V, 50/60 (47-63) HzOutput Voltage: DC 29.4VMaximum Output: 10ADimension: 8.4" x 4" x 2.3"Weight: 4.3 lbCE Approved
Optional Safety Guard Bag:
You may use optional safety guard bag for battery carrying, charging and storage. The bag is made with made of anti-explosion, fire-resistant and water resistant Silicone coated fiberglass fabric.
Applications:
1. Directly use this battery to provide power:

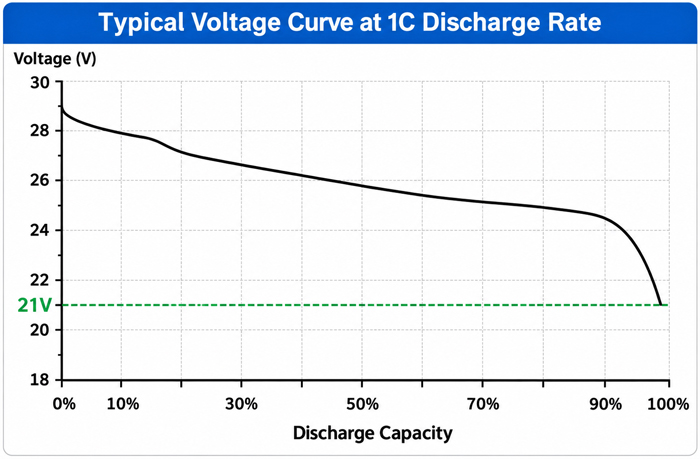

This battery output voltage range is 21V ~ 29.5V. When the battery is fully charged, its output voltage is 29.5V. The output voltage will drop gradually during the discharge process and the final cut off voltage is 21V:
Only use this battery with devices that can accept every voltage in the 20-30V range and require 1000W or less power.

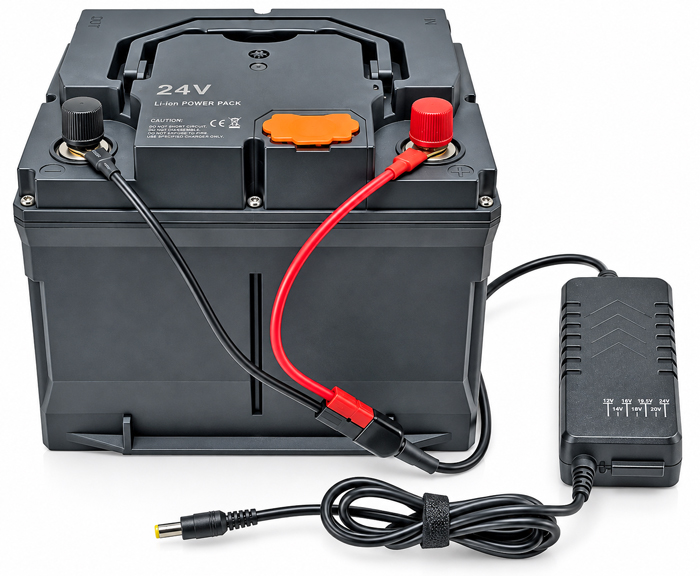

2. Use this battery with a DC to DC converter to to provide different voltages
This battery output voltage range is 21V ~ 29.5V. This output voltage can be converted to different voltages to meet different needs by using DC to DC power converters.

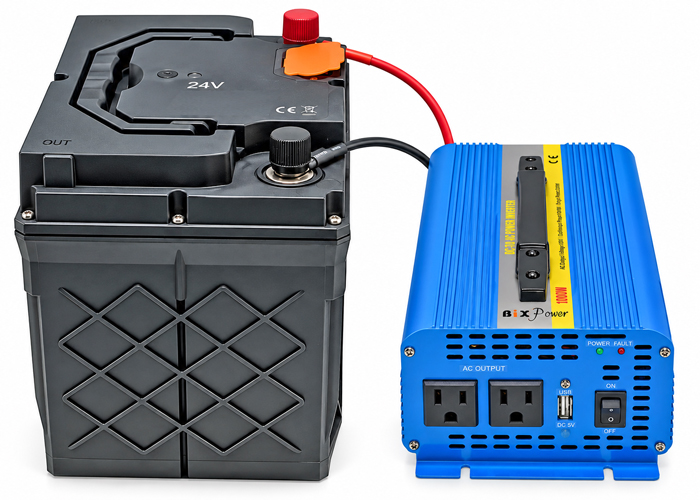

3. Use this battery with an optional DC to AC Power Inverter to provide 110V AC power
This battery output voltage range is 21V ~ 29.5V. You can use a 24V DC to AC Power inverter to convert DC power to 110V or 220V AC power.
4. Use this 24V lithium ion battery to replace two 12V lead acid batteries connected in serial:
You may use this single 24V lithium ion battery to replace two 12V lead acid batteries connected in serial. This battery is perfect for devices that need up to 1000W power, such as the 24V motors in electric scooters and electric wheelchairs
The following are some electric scooters and mobility scooters that originally use two 12V lead acid batteries . Please note that this is just a partial list.
· GT Scooter Tsunami
· Mongoose Fusion
· Amigo RT Pack
· Rad2Go Q Chariot
· BladeZ Electric Travelmate
· Bruno Cub 35 FWD - U1 optional
· Bruno Cub Pediatric 18 AH
· Bruno Typhoon C3
· Damaco Child's Elite - 14x14
· DDC Shoprider 777E
· DDC Shoprider Snazzy
· DDC Shoprider Sunrunner
· Xcooter Blaster XC300GT
· Frank Mobility E-Fix - E19 Model
· Levo LC (Requires 2 Batteries) · Medline Industries Gemini 1
· Merits Merits P120, P1201, P12011, P12012 Travel-Ease Regal
· Merits Merits P320, P3201, P32011, P32012 Junior
· Merits Merits S235, S2351, S2353, S2354 Pioneer 1
· Merits Merits S245, S2451, S2454 Pioneer 2
· Merits Merits S246 Pioneer 2 Twin
· Pride Mobility Rally
· Rad2Go Tiger Shark E10
· Rascal 200T
· Rascal 320 PC
· Rascal 500T
· Rascal Rascal 110
· Rascal Rascal 120
· Schwinn X-CEL
· Shoprider Cutie L
· Shoprider Dasher 9
· Shoprider Start 8
· Suiter Destination
· Wheelcare Caddy
· Wheelcare Superlight
· X-Treme X-50-500
· X-Treme XA-1000 ATV5
This lithium ion battery should be able to replace the two 12V lead acid batteries on these scooters. However, we have not tested our this 24V lithium on battery with the devices on the list and so are unable to confirm the compatibility. Also, you will need to use this battery's charger to charge this battery. You can not use the original lead acid battery charger.
Warranty: One Year limited warranty. The one year limited warranty covers manufacturing and quality defects only. Please note that batteries wear out with use. The amount of charge a battery can hold gradually decreases due to usage and aging, which is normal, and this is not the issue covered by warranty.
|
|
|
