This package comes with Two High capacity, small size, light weight BiXPower BP100 rechargeable batteries, ( each battery has 100Wh high capacity, total capacity 200 Watt-hour ). With a special DC Special Cable that is specially designed for a ResMed AirSense 10 CPAP machine.
The battery pack comes with Two BP100 batteries + One ResMed S10 DC Special Calbe + One Y25 Split cable + AC Charger + Car Charger
Two batteries together may power ResMed AirSense 10 CPAP machines 2 ~ 4 nights of continuous run-time on an average CPAP pressure, average breathing rate, optimal mask seal and with the humidifier, heated tubing and exhalation pressure relief disabled.
The battery works with the following AirStart™ 10, AirSense™ 10, and AirCurve™ 10 machines manufactured by ResMed:
• AirStart™ 10 CPAP with HumidAir™ Heated Humidifier
• AirStart™ 10 Auto CPAP with HumidAir™ Heated Humidifier
• AirSense™ 10 CPAP Machine with HumidAir™ Heated Humidifier
• AirSense™ 10 Elite CPAP Machine with HumidAir™ Heated Humidifier
• AirSense™ 10 AutoSet CPAP Machine with HumidAir™ Heated Humidifier
• AirSense™ 10 AutoSet for Her CPAP Machine with HumidAir™ Heated Humidifier
• AirCurve™ 10 S BiLevel Machine with HumidAir™ Heated Humidifier
• AirCurve™ 10 VAuto BiLevel Machine with HumidAir™ Heated Humidifier

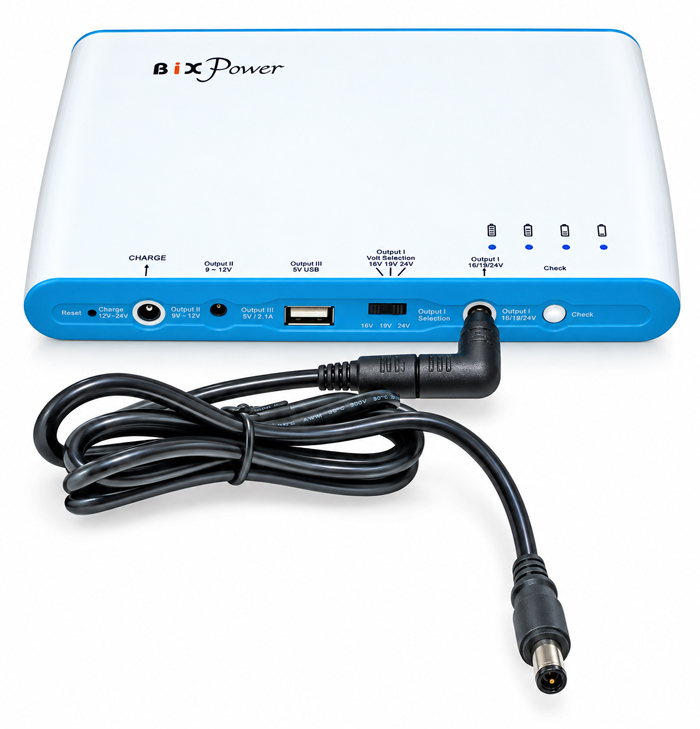

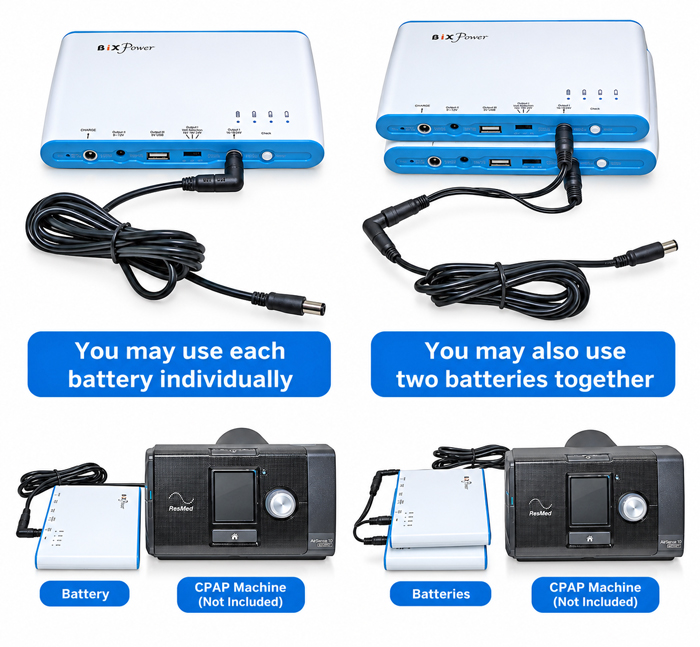

You may use each BP100 battery separately with ResMed CPAP cable, just plug in the ResMed DC converter to Output port I ( set to 24V of a BP100 battery like this:

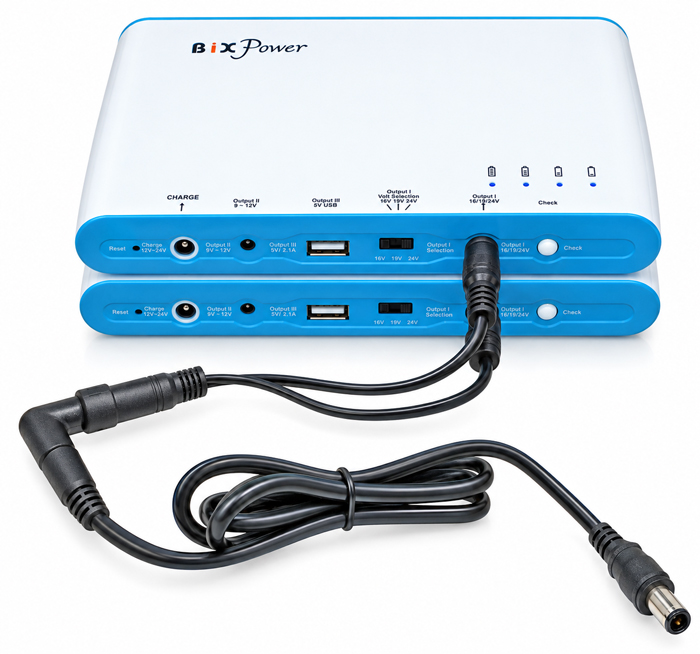

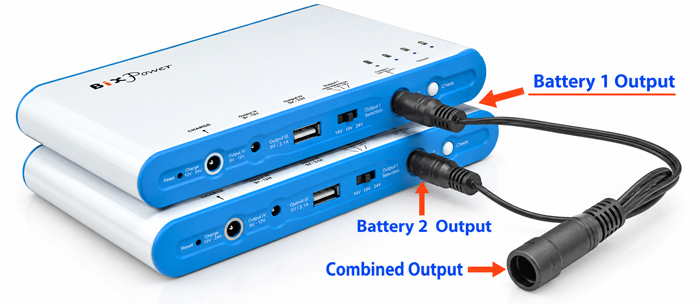

You may also use two batteries together. Just set Battery 1 and Battery 2 Port I output voltage at same voltage at 24V, plug Y25 split cable male ends to Battery 1 and Battery 2 (Port I), then plug S10 special cable to Y25 split cable female end, just like this:

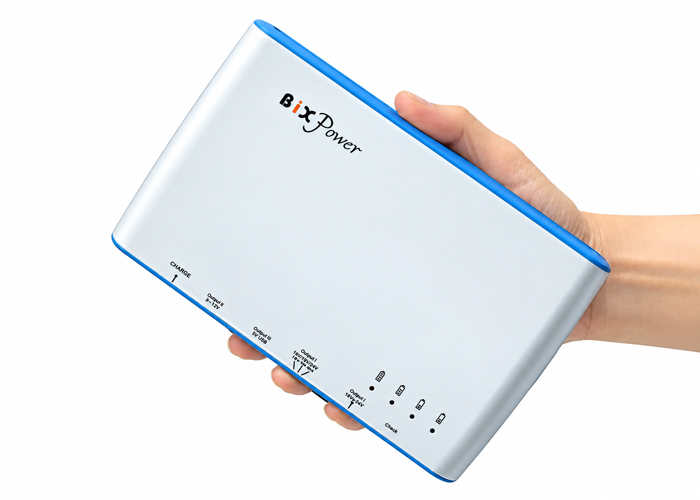

BP100 battery compact size allows it to easily fit into a laptop/notebook carry bag.
Battery Specifications:
|
Model:
|
BP100
|
|
Capacity:
|
100 Watt-Hour
|
|
Battery Cell:
|
Lithium-ion
|
|
Input Charging Port:
|
Input Voltage Range: DC 12 ~ 24V. Connector Size: 5.5 x 2.5mm
|
|
Outputs:
|
Port I:
Output Voltage: 16V, 19V or 24V selectable
Output Connector Size: 5.5 x 2.5mm
Maximum Output Current: 4A @16V, 3.5A@19V, 2.5A@24V
Port II: Nominal Output Voltage 11.1V
Output Voltage Range 9V ~ 12.6V
Output Connector Size: 3.5 x 1.35mm;
>Maximum Output Current: 5A
Port III: 5V USB Port; Maximum Output Current: 2.A
Total maximum output with all 3 outputs: 65W
|
|
Charging time /Temperature
|
4-6 hours / 0～45 ℃
|
|
Size
|
180 x 110 x 22.5mm ( or 7.2" x 4.2" x 0.9")
|
|
Weight:
|
621g ( or 1.4 lb)
|
|
Power Indicator:
|
4 level LED indicator
|
|
Built-in Protection Circuit:
|
-Over-charge ; Over-discharge; Over current ;Over temperature
- Short circuit protection
|
|
Operating Temperature:
|
-20～ 60 ℃
|
|
Storage Temperature:
|
- 20～40 ℃
|
This battery is made with high quality Panasonic Li-ion battery cells and is compatible with many devices that need 15V, 16V, 16.5V, 18V, 18.5V, 19V, 19.5V, 20V or 24V DC power. The 24V voltage with special cable specially designed for the ResMed CPAP Machine can output voltage to 24V DC power with special configuration. The 5V USB port can power many small devices such as smart phones, tablets.
This Universal External Lithium Rechargeable Battery Pack can provide power for laptop computers, digital cameras, digital photo frames, PDAs, cell phones, DVD players.
This battery features 3 output ports.
Output Port I
Output Port I features 3 different regulated voltages through a hardware volt selection switch: 16V, 19V, 24V. This port can be used to power laptop notebook computers. Please set the port I output voltage close to your laptop power adapter output voltage or laptop's input voltage. Please set voltage at 24V for ResMed S10 machines Special cable for ResMed:
Please note that a regular cable may not work for ResMed machines even connector size is correct. This cable has been specially configured internally for ResMed machines special need.
Output Port II & Port III
Port II's output voltage range is 9V to 12.6V. Nominal voltage is 11.1V. When the battery is fully charged, its voltage is 12.6V. Output voltage will then decrease gradually. Most of the time, the output voltage will be around 10V ~ 11V ( nominal voltage is 11.1V). When the voltage drops to 9V, the port will shut off and stop providing power. This port can be used to power portable DVD players and digital photo frames.
Output III is a 5V USB port. Its maximum output current is 2.1A, which can be used to power or charge iPad, tablet computers and any other device that can be charged from a USB port (USB power cable not included).
Charge the battery: This battery can be charged from any 100V ~ 240V, 50Hz/60Hz AC power source with the battery AC charger.
You may charge each battery separately:

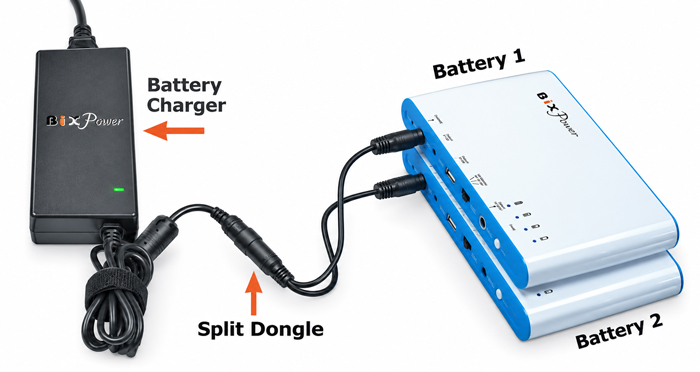

You may also charge two batteries together with Y25 split cable like this:
You may use battery while it is under charging.
This battery has built-in charging controller to control the charging process. It can accept a very wide range of voltage for charging. You can use a regular power adapter with 12V to 24V DC power to charge the battery. The battery charge port is a 5.5 x 2.5mm female jack, therefore a 5.5 x 2.5mm male connector is required.
Car Charger:
You may also charge batteries from a 12V car cigarette socket with ar charger:
You may also charge two batteries together with split dongle:

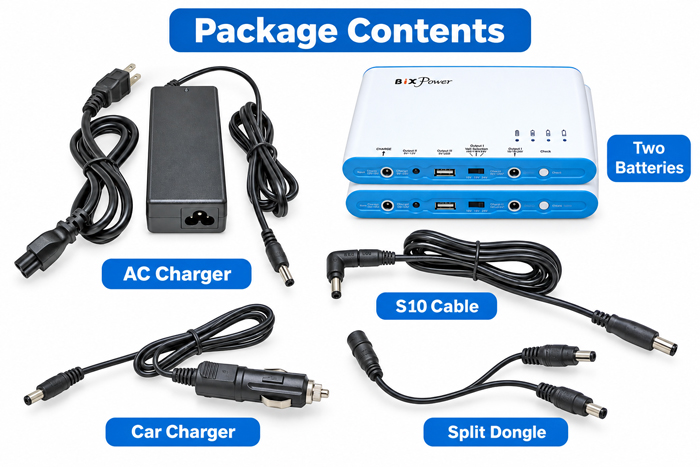

Package Contents:
The battery pack comes with Two BP100 batteries + One ResMed S10 Power Cable + One Y25 Split cable + AC Charger + Car Charger
Battery Running Time: Depending on CPAP Machine setting and running environment,
a CPAP machine may need as much as
90W power or as little as 10W power. So
the battery running time may vary a lot: from 2 hours to 20 hours. To maximum battery
running time, please turn off CPAP Machine humidifier and heater, set the
pressure as low as possible.
|
|
|
