USB Type C Power Converter for ResMed AirSense 11 CPAP Machine

This small size, light weight, high efficiency DC to DC power adapter can convert USB C power (such as a battery supports USB C PD power output) to 24V regulated stable voltage DC output power. It comes with a special power connector that works for ResMed Airsense 11 PAP Machines.

This power converter itself does not generate any more, it just converts power. In order to get enough power for CPAP machine, it is recommended that your USB C power source supporting PD100.

DC Converter Features:

This DC to DC power adapter can convert variable 12V DC (range 9V -32V) to 24V regulated stable DC power. Maximum output 65W

This DC to DC power adapter's input side has 5.5 x 2.5mm Female barrel connector with two 16AWG bare wires. The output is a 5.5 x 2.5mm male barrel connector with 18AWG wires. It is very easy and flexible to connect with batteries and other power source.

Wide input range: 9V ~ 32V
Output: Max. 65W
Small size: 90 x 36 x 26mm ( or 3.5" x 1.5" x 1")
Light weight: 142 ( or 5 oz)

Input: Input is 5.5 x 2.5mm female connector. If you cut off the connector, it will be two bare wires: red color is for Positive input and the black color is for Negative/Ground input. It is CRITICAL that the power adapter is connected correctly in polarity to the power source: Positive on adapter connects to Positive on power source. Negative on adapter connects to Negative on power source. FAILURE TO DO SO MAY RESULT IN SEVERE DAMAGES.

USB C Input Connection:

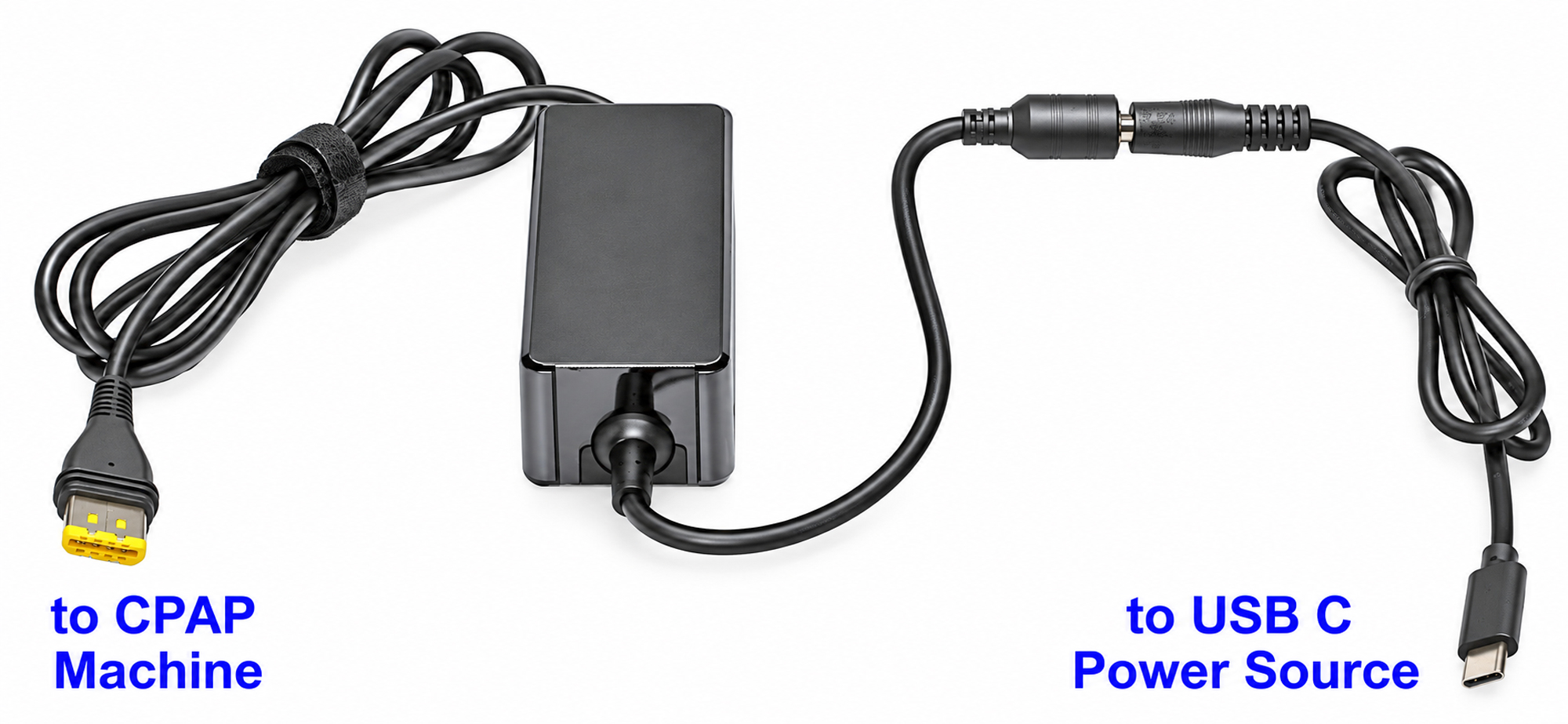

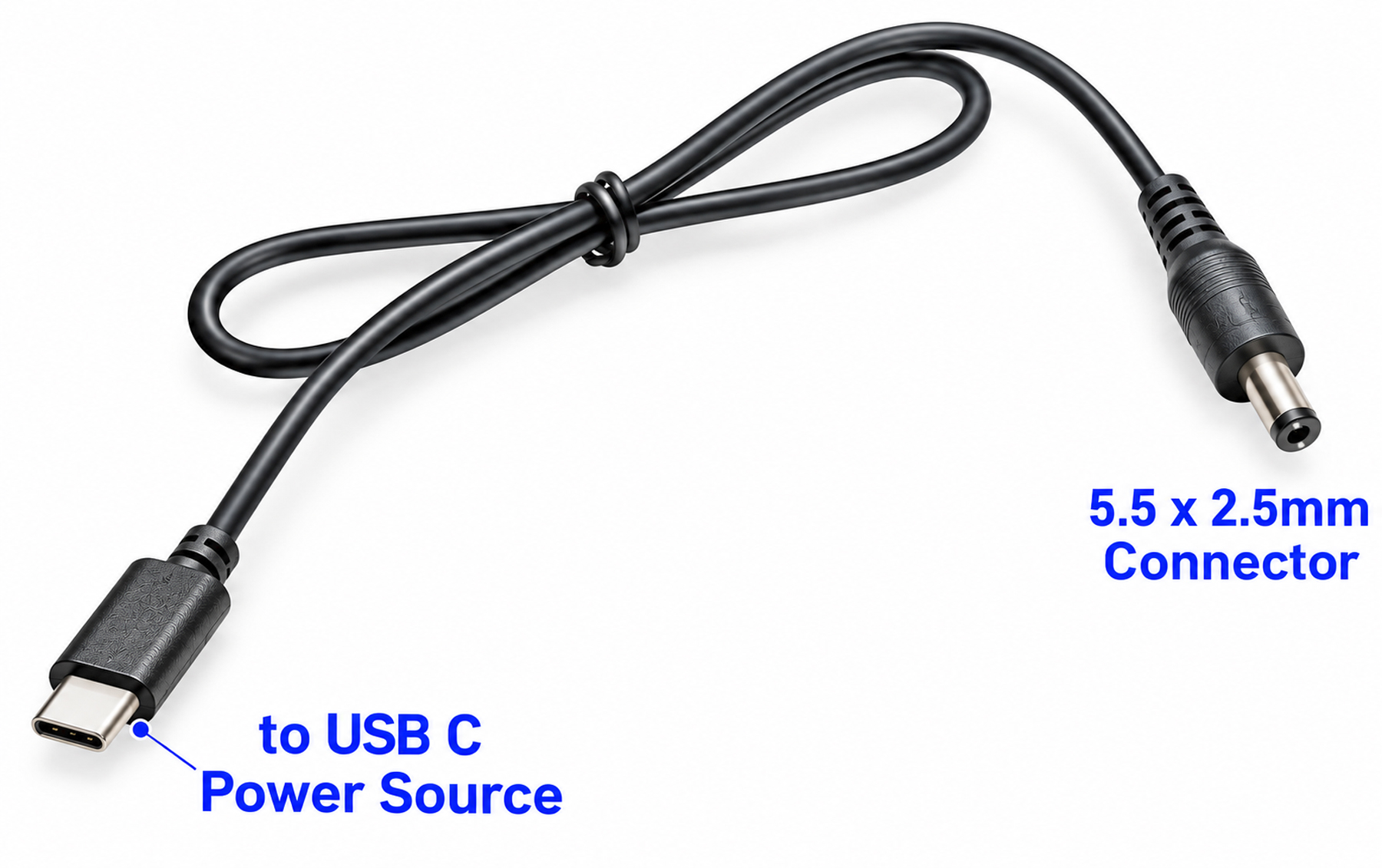

Special USB C cable one end can plug to a USB C port, convert USB C power source, another end is a barrel connector that can plug to power converter input port.

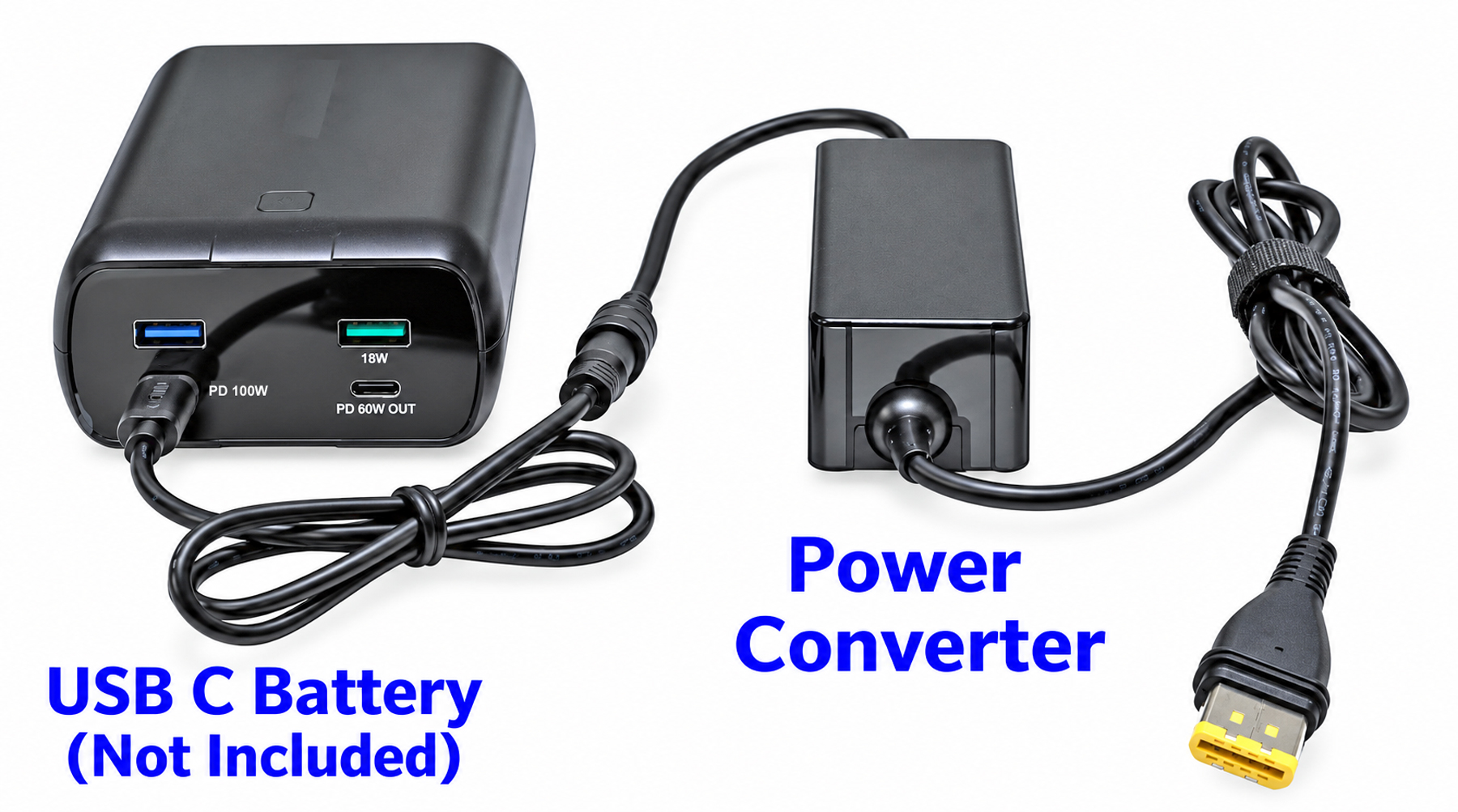

This USB C cable will output 20V DC power from a USB C battery that support PD function and can output 20V power. If the USB C power source does not support PD function and 20V output, then this converter may not work.

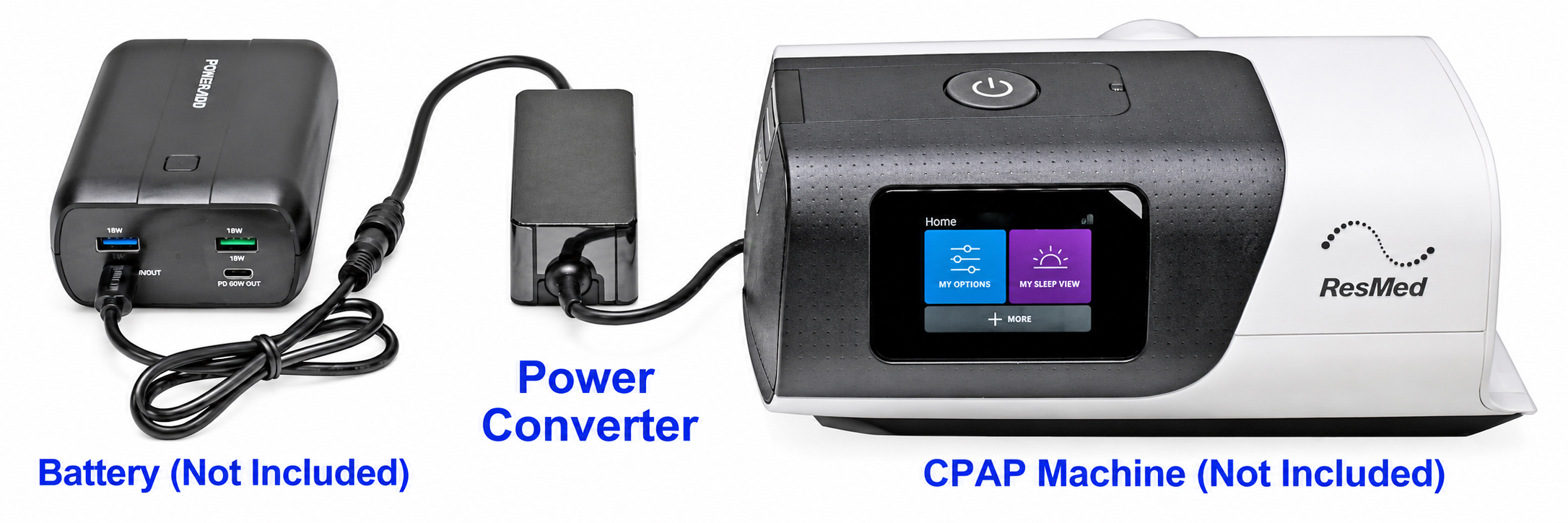

Battery and CPAP machine are not included.

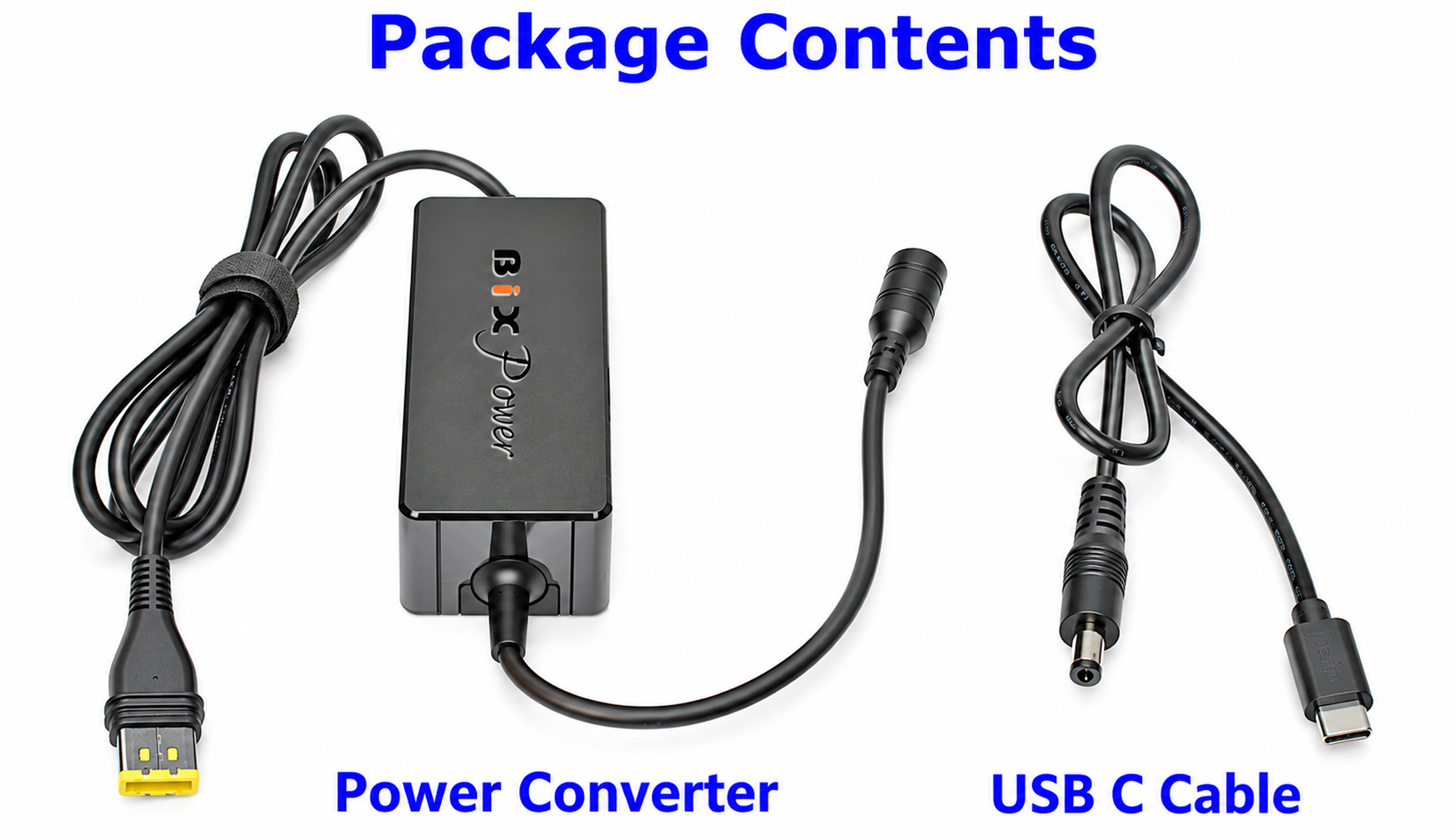

Package contents:

24V DC Power Converter for ResMed Airsense 11 x1
USB C Input cable x 1
