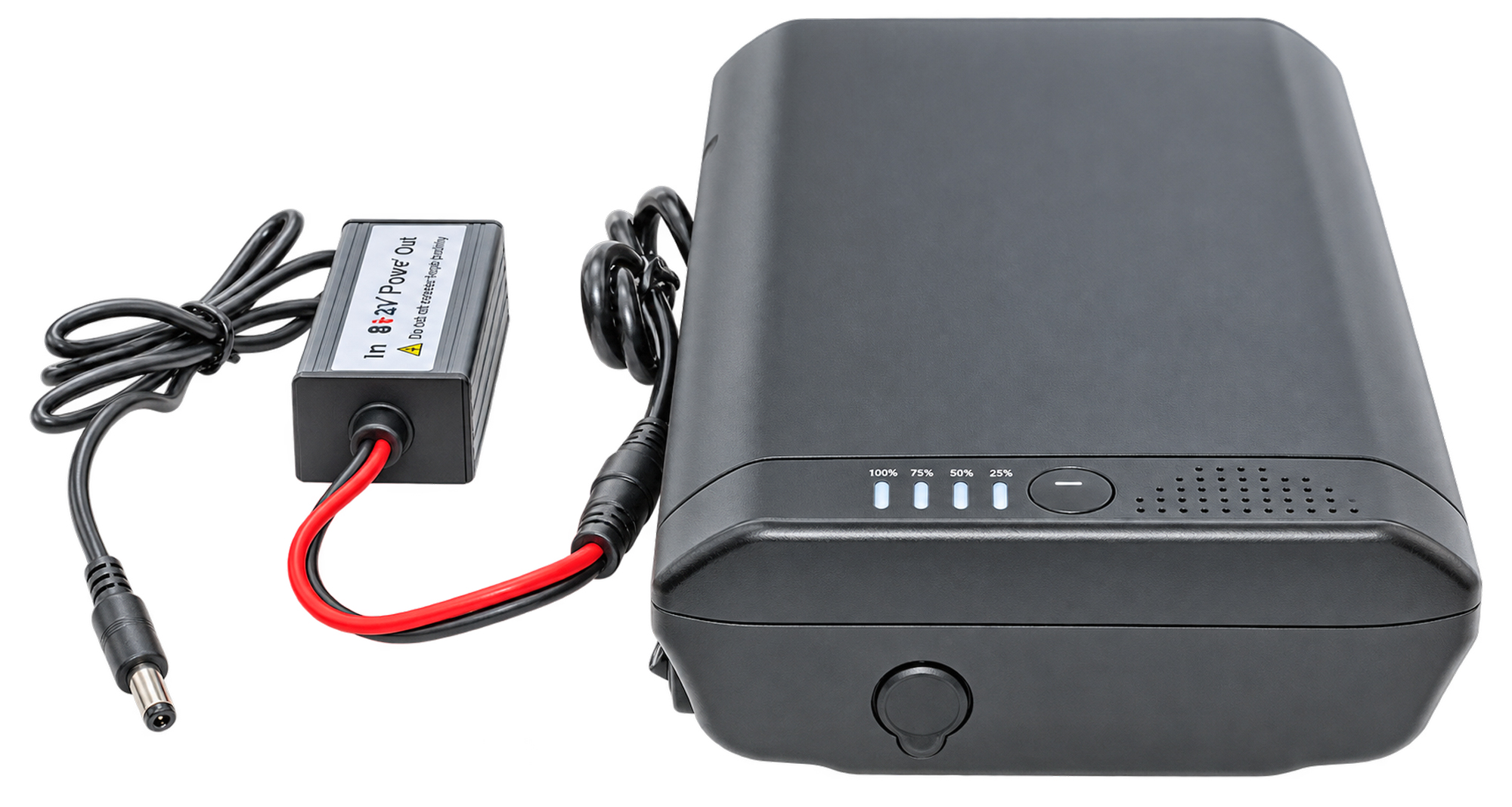

24V Regulated Output Voltage Super Capacity (320Wh) Battery Pack EP300-24V

This package comes with a BiXPower BX2494 super high capacity (322 Wh) lithium ion rechargeable battery pack and a 24V DC converter that converter battery output to a stable regulated 24V DC power.

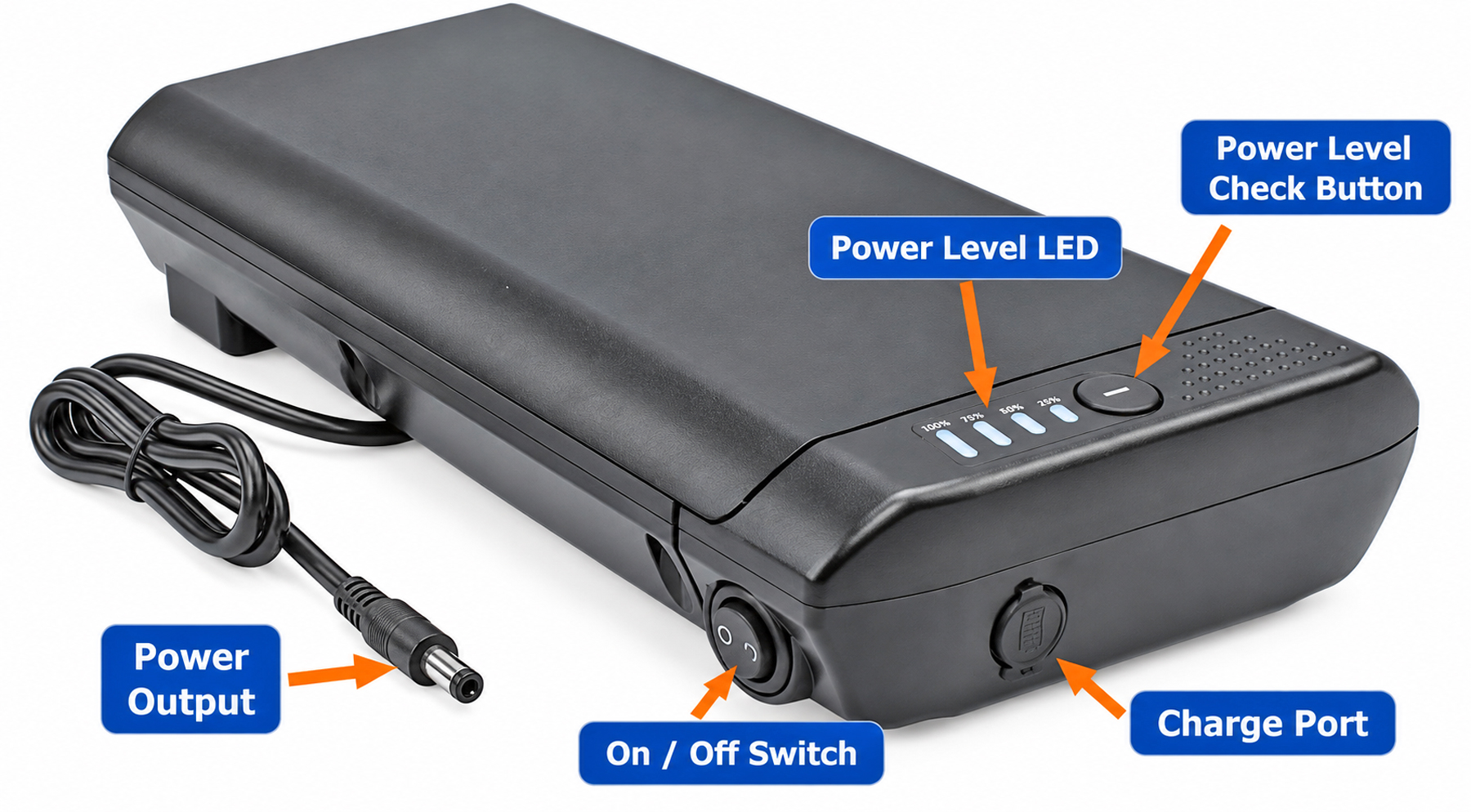

Battery Features:

Compact size, light weight, easy to carry:

The battery's bottom has 4 mounting holes, making it easier to mount onto a desk or other surfaces:

Specifications:

Capacity	320 Watt-hour
Maximum Continuous Discharge Current	12 A
Size	268 x 150 x 56 mm (10.6" x 6" x 2.2")
Weight	2.2 kg (5 pounds)
Operate Temp. Charge	0～45 ℃
Operate Temp. Discharge	-20～60 ℃
Storage Temp.	-20～40 ℃
Cycle Life	500 Times
PCB Safety Function	Cell balancing Over-discharge Over-current protection Over-charge Temperature protection Secondary protection

19V DC Converter:

This DC to DC power adapter can convert 24V or 36V DC (range 21-45V) to 19V DC power. Maximum output 6 Amps

It can directly connect to a 24V or 36V lithium ion battery or any battery with output voltage range within 21V to 45V range. Its maximum output is 6 Amps

This DC to DC power adapter's input side has 5.5 x 2.5mm Female barrel connector with two 16AWG bare wires. The output is a 5.5 x 2.5mm male barrel connector with 18AWG wires. It is very easy and flexible to connect with batteries and other power source.

Features:
Wide input range: 9V ~ 32V
Large output: up to 5 mps
High efficiency ( > 90%)
Small size: 78 x 36 x 24mm ( or 3.2" x 1.4" x 1")
Light weight: 180 g ( or 6.5 oz)

Input: Input is 5.5 x 2.5mm female connector. If you cut off the connector, it will be two bare wires: red color is for Positive input and the black color is for Negative/Ground input. It is CRITICAL that the power adapter is connected correctly in polarity to the power source: Positive on adapter connects to Positive on power source. Negative on adapter connects to Negative on power source. FAILURE TO DO SO MAY RESULT IN SEVERE DAMAGES.

Output: The output connector is a 5.5 x 2.5mm male barrel connector.

How to Use the Battery

1. Charge the Battery:

The battery pack comes with its own AC charger. You can charge the battery from any 100V ~ 240V AC power outlet.

The battery output voltage range is 20V ~ 29.5V, and its nominal voltage is 25V. When the battery is fully charged, its output voltage is 29.5V. The output voltage will decrease gradually and finally cut off at around 20V. Most of the time, the voltage will be around 24V to 26V.

Output voltage without DD90X DC converter

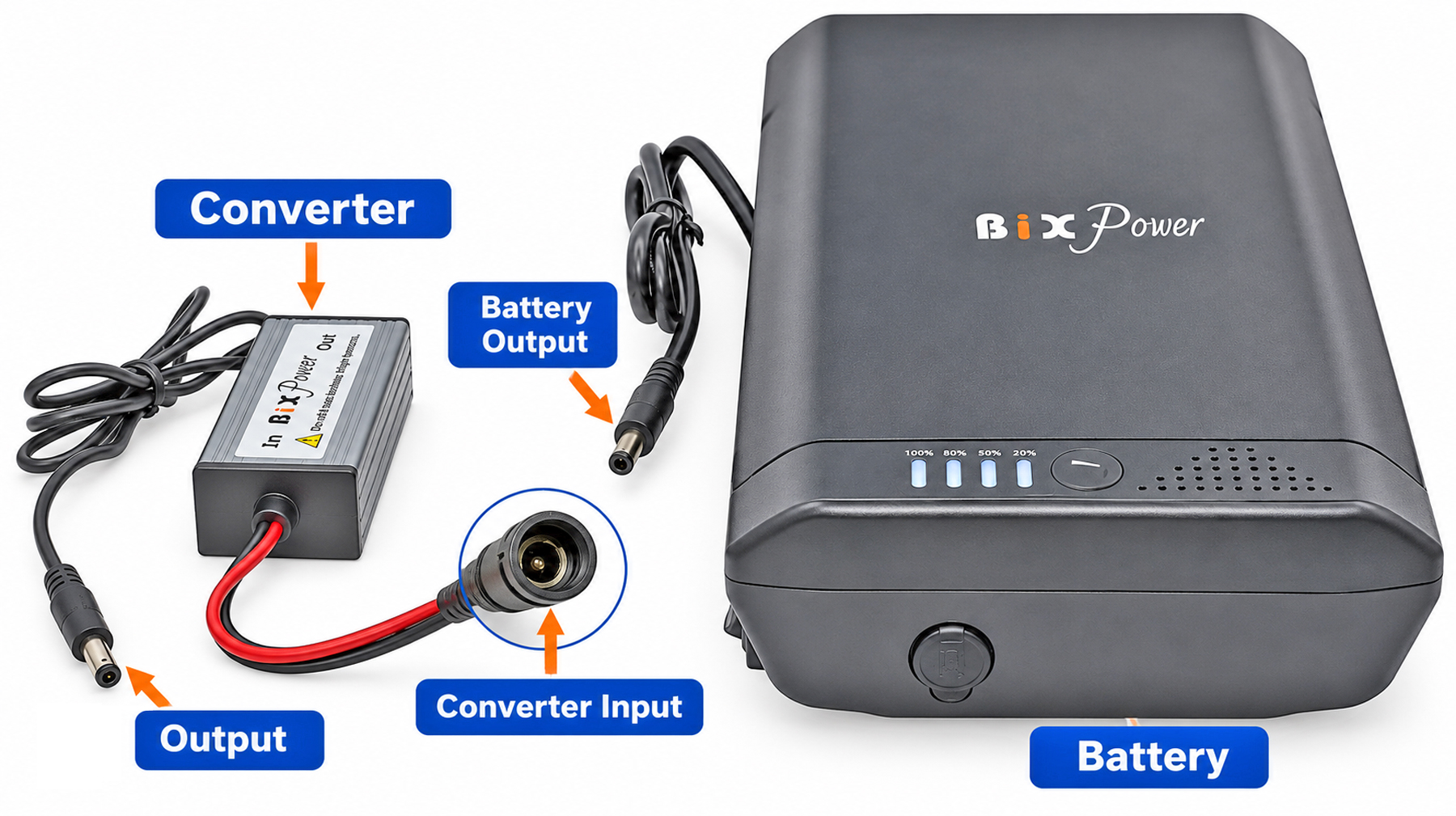

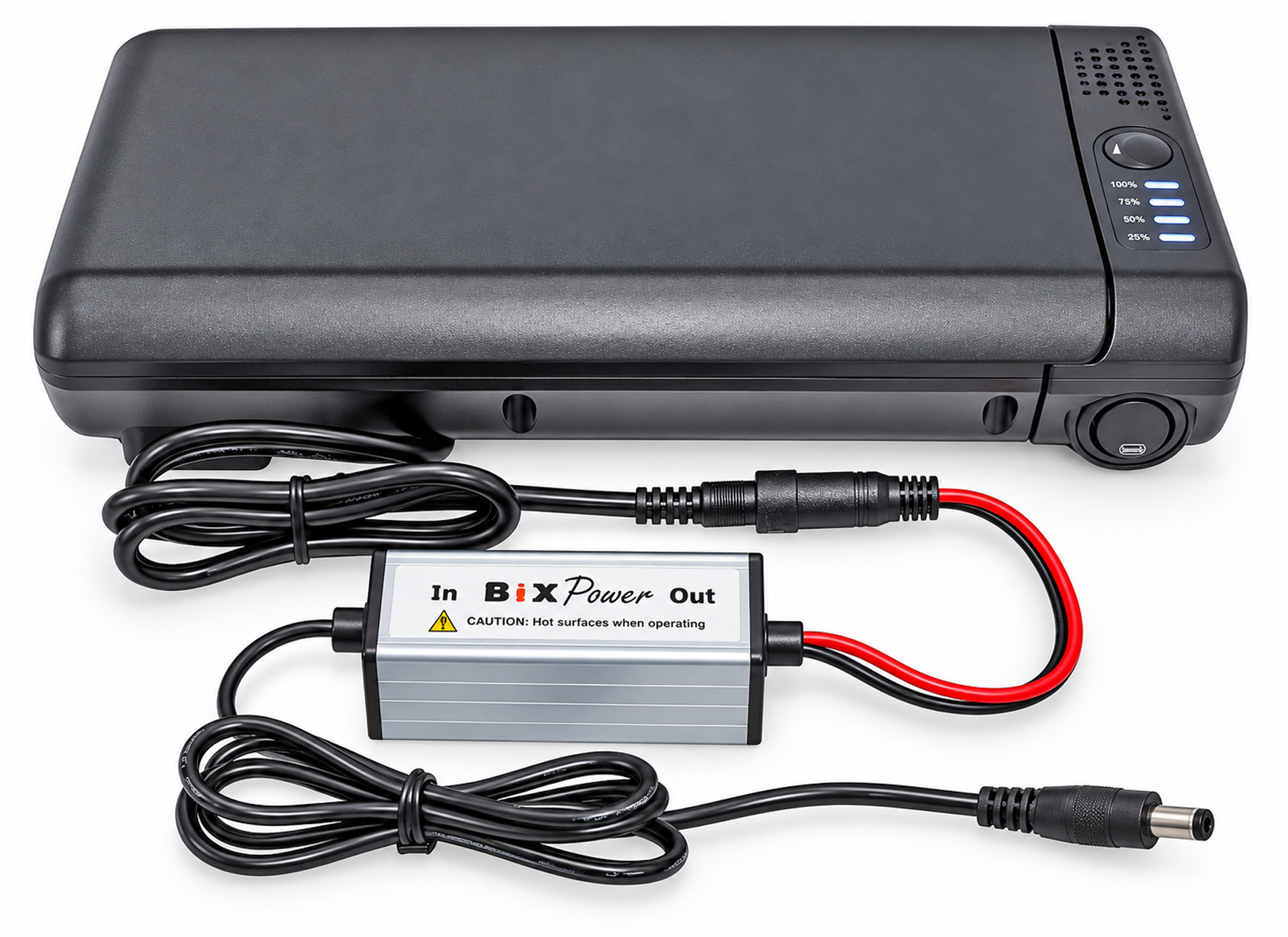

2. Connect the DC converter to the battery output cable and then turn on battery

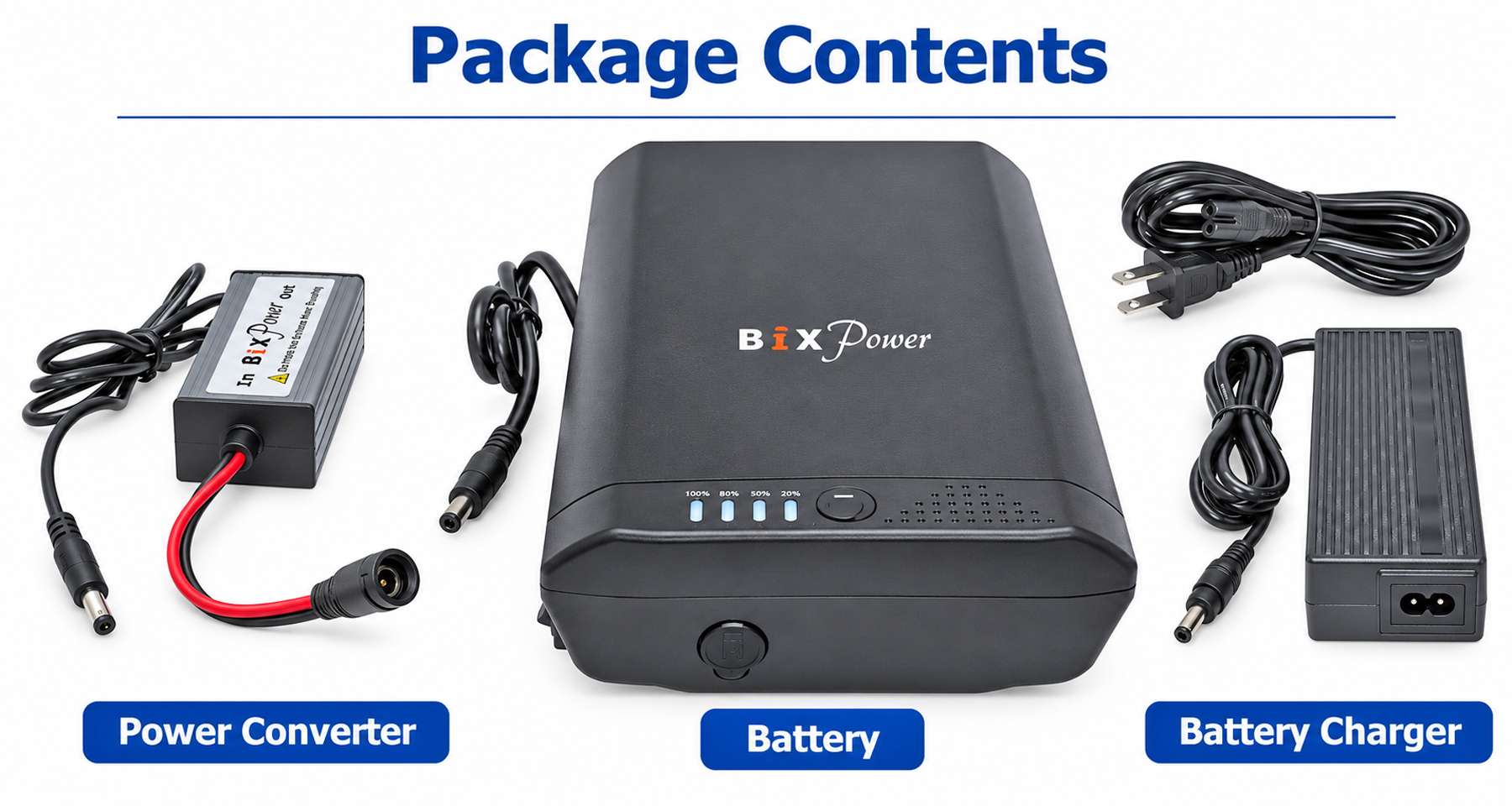

Package Contents:

Battery x 1
AC Charger x 1
DC Power Converter x 1

Optional connector tips:

The connector on the power adapter output cable is a 5.5 x 2.5mm male barrel connector, which will work with many devices. If you need different size connectors, you may order our C series optional connector tips separately. A C series connector can plug on the battery output cable to form a new connector.

Technical Specifications:

Acceptable Input DC Voltage Range : 9V ~ 32V
Output voltage: 24V
Output current: Max. 5A*
Efficiency: > 90%
Safety Protections: Over Current & Over Voltage Protection
Short Circuit Protection: Yes
Small size: 78 x 36 x 24mm ( or 3.2" x 1.4" x 1")
Light weight: 180 g ( or 6.5 oz)

*5A is its maximum output current, not actual output current. Actual output current depends on the device's requirements. For example, if your device requires 2 Amps, it will output 2 Amps.
